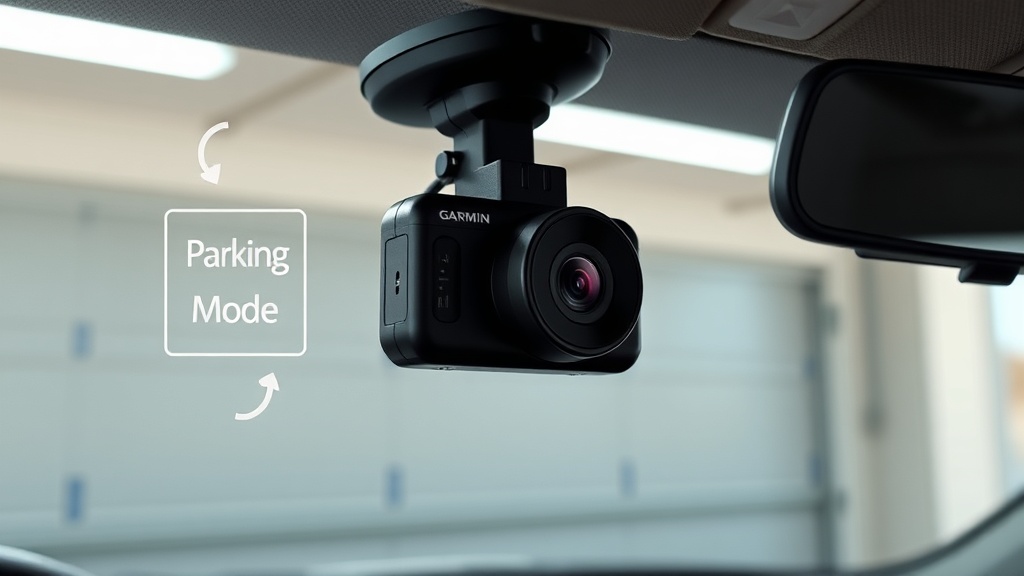

Garmin Dash Cam Mini 2 Parking Mode: What You Should Know
For anyone relying on the Garmin Dash Cam Mini 2 to protect their vehicle while parked, understanding its parking mode is essential. This compact camera offers event-triggered recording, but the feature set around battery life and hardwiring can be confusing. Here is what you actually need to know about keeping your Mini 2 vigilant when the ignition is off.
Does the Garmin Dash Cam Mini 2 Need a Separate Hardwire Kit for Parking Mode?

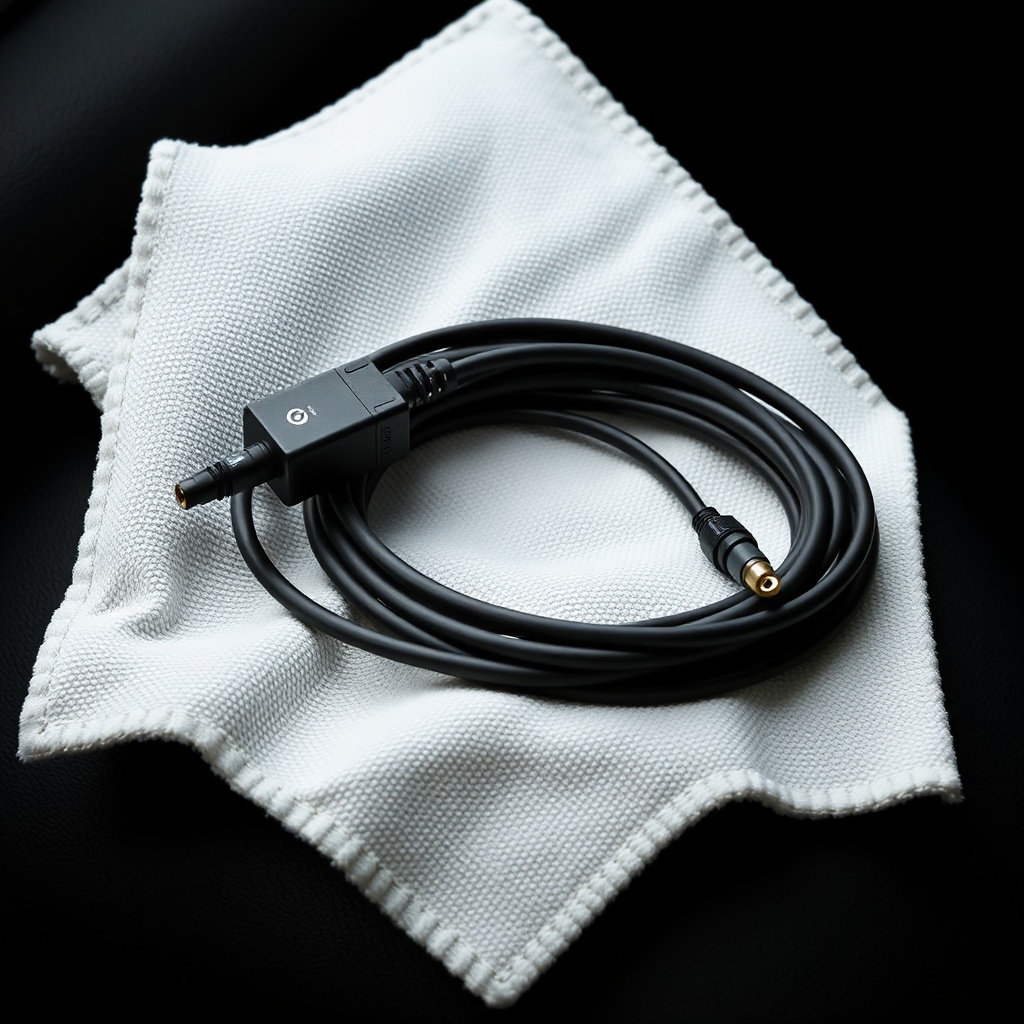

Yes, the Garmin Dash Cam Mini 2 requires the Garmin Constant Power Cable (sold separately, around $25–$30 / £20–£25) to enable true parking mode. Without it, the camera will simply stop recording once the vehicle’s accessory power is cut. The hardwire kit taps into a constant 12V source (such as the fuse box) and a switched source so the camera knows when the car is off. This kit provides the necessary power from the vehicle’s battery, not the dash cam’s internal battery, which is very small and only holds enough charge for a clean shutdown.
If you try to use parking mode with just the included 12V adapter, the camera will shut down with the ignition. Installing the kit properly (or paying a professional about $50–$100 / £40–£80 for installation) is non-negotiable for around-the-clock protection.
How Long Does the Garmin Dash Cam Mini 2 Record in Parking Mode?
Recording duration in parking mode depends entirely on your vehicle’s battery health and capacity, not on the dash cam’s internal storage or battery. The camera draws about 0.2–0.3 amps when recording (with Wi‑Fi and GPS active) in event-triggered mode. A healthy 12V car battery (around 50–60 Ah) can support this for roughly 24–36 hours before dropping below a safe starting voltage. The Garmin Constant Power Cable includes a voltage cut-off feature (default set at 12.4V) that automatically stops power to the camera to prevent a dead battery. This means the Mini 2 typically records for 12–20 hours in a real-world scenario, not days. If you drive daily, that is usually sufficient; long weekends parked at an airport may drain the battery low enough to trigger the cut-off early.
Event Detection vs. Time-Lapse Recording: Which Parking Mode Type Does the Mini 2 Use?
The Garmin Dash Cam Mini 2 does not offer a full-time time-lapse recording in parking mode like some competitors. Instead, it uses event-triggered recording with the Garmin Constant Power Cable. When the accelerometer senses a bump, impact, or motion (via optional G-Sensor sensitivity settings), the camera wakes from a low-power standby state, records a 30–60 second clip, and returns to standby. This saves storage space and battery power compared to continuous recording. The camera will record up to 10 seconds before the event (a pre-buffer) and about 50 seconds after. You cannot set it to keep recording non-stop like a time-lapse; the Mini 2 is designed purely for incident detection while parked.
What Happens If the Car Battery Voltage Drops Too Low?
The Garmin Constant Power Cable has an integrated voltage monitor. When the vehicle’s battery voltage drops to a pre-set threshold (usually 12.4V for lead-acid batteries, or 12.2V for AGM), the cable automatically cuts power to the dash cam. The Mini 2 will save the current recording segment (if any) and shut down. This is a critical safety feature to ensure you can still start the car after days of being parked. On newer vehicles with smaller start-stop batteries (often AGM, 40–60 Ah), this cut-off might kick in after just 10–15 hours of parked recording. The camera will not restart until the ignition is turned on and the battery is recharged above the threshold. Using a battery tender or driving for at least 20 minutes daily helps maintain enough reserve for continued parking mode coverage.
Does Parking Mode Drain a Hybrid or Electric Vehicle (EV) Battery Differently?
Yes, and it matters. In hybrid and EV vehicles, the 12V auxiliary battery (often smaller, around 30–45 Ah) powers the dash cam. This battery is typically recharged by the high-voltage traction battery via a DC-DC converter when the car is on. When parked, the traction battery does not usually charge the 12V battery, so the drain from the Mini 2 can deplete the auxiliary battery within 10–18 hours. Some EVs and hybrids also have a “deep sleep” mode that may cut power to the OBD-II port or fuse panel after a few hours, which can interrupt the Garmin Constant Power Cable. A warning: wiring directly to the high-voltage system is dangerous and not recommended. Stick to the 12V fuse panel with the voltage cut-off. Consider using an external battery pack (like the BlackVue B-124X) for longer parking recording in these vehicles.
What Are the Best Garmin Dash Cam Mini 2 Parking Mode Settings for Battery Life?
To optimize battery life during parking mode, you need to adjust a few settings on the Garmin Drive or Garmin Dash Cam app:
- Set G-Sensor to Medium or High: Lower sensitivity means fewer false triggers (e.g., passing trucks) and less battery drain. Low sensitivity may miss actual hits.
- Disable Wi-Fi and Bluetooth when not downloading clips. These radios pull about 0.5–0.8 amps in standby, dramatically shortening parking mode runtime. Turn them off in the app.
- Reduce Video Resolution in parking mode if possible. The Mini 2 defaults to 1080p; dropping to 720p (if your firmware supports it) reduces data processing draw by about 15–20%.
- Use the 12.4V cut-off setting (default) for most cars. Charge your battery fully before long trips. For older or weak batteries, set the cut-off higher (12.6V) to avoid a dead start.
- Test Over One Night: Park at home, enable parking mode, and check the battery voltage in the morning. Aim to stay above 12.2V to confirm your setup works.
| Symptom / Status | Severity |
|---|---|
| Camera stops recording after 8–10 hours parked on a new battery | Needs attention soon – Voltage cut-off may be set too low, or your battery capacity is low. |
| Vehicle starts fine after parking mode runs for 24 hours | Usually not urgent – Your setup is likely correctly configured and battery is healthy. |
| Battery dies completely after one night of parking mode | Needs attention soon – Voltage cut-off faulty (should have turned off cam), or battery is weak. Check cable and battery. |
| Mini 2 stays silent after overnight parking (no clips recorded) but car starts fine | Usually not urgent – No incident triggered; camera was in standby most of the time. Normal behaviour. |
| Garmin Constant Power Cable gets warm to the touch after a few hours | Needs attention soon – May indicate excessive current draw or poor wiring. Investigate fuse taps and connections. |
What Owners Say
“Parking mode works fine for my daily commute, but after three days at the airport, the camera was off and my battery was at 12.1V. I wish there was an external battery option.”
— “MikeD”, Garmin Forum, 2024
“I bought the constant power cable and installed it myself. It took about 30 minutes. The camera catches door dings in the parking lot. Just remember to turn off Wi-Fi in the app—it killed my battery in one day otherwise.”
— “Jen from Seattle”, Amazon Review, 2023
Frequently Asked Questions
How do I know if parking mode is active on the Garmin Dash Cam Mini 2?
When parked and with the constant power cable properly connected, the camera’s LED will pulse amber (slow blink) about every 3 seconds. If the LED is solid green, it’s recording normally. If it’s off, the camera has shut down due to voltage cut-off or a power issue. You can also check the Garmin Drive app: look for a “Parking Mode Active” status on the device settings page.
Can I use the Mini 2’s parking mode without the constant power cable?
No. The Mini 2 requires the Garmin Constant Power Cable to maintain power when the ignition is off. Without it, the camera will shut down completely. The included 12V adapter will not work for parking mode because it cuts power with the car.
Will parking mode drain my car battery if I only drive once a week?
Yes, likely. With a typical car battery, parking mode draws about 0.2–0.3A. Over 7 days, that’s roughly 5–7Ah, or about 10–15% of a standard 60Ah battery’s capacity. If your battery is already weak or you live in cold weather, this can leave you stranded. Use a battery maintainer (trickle charger) if parking mode is essential for days without driving.
Does the Mini 2 record sound during parking mode?
Yes, it records audio by default in all modes, including parking mode. You can disable audio recording in the Garmin Drive app under “Microphone” settings. Some owners prefer to keep it on to capture verbal exchanges or ambient sounds after an incident.
What if I have a modern car with start/stop technology?
Vehicles with start/stop often have smaller AGM batteries (around 40–50 Ah) and may cut power to aftermarket accessories after a certain time. You may see parking mode only last 10–15 hours before the voltage cut-off kicks in. This is normal. Using the 12.4V cut-off on the constant power cable is the safest approach.
Can I wire the Mini 2 to an external battery pack for longer parking mode?
Yes. You can connect the Garmin Constant Power Cable to a secondary battery (e.g., BlackVue B-124X, Cellink Neo) that is then charged by the vehicle’s alternator. The Mini 2 will then draw from the external pack, preserving your main starting battery. This adds $200–$400 / £150–£350 to the setup but can extend parking mode to days or weeks, depending on the pack’s capacity, and is ideal for long-term parking.
